Startech TRAYLESS SATA MOBILE RACK (HSB220SAT25B)
- Azonosító: #280456
- Model#: HSB220SAT25B
- Frissítve: 18 órája
Külső raktáron
24 hónap jótállás
29 720 Ft
23 402 Ft + Áfa
Startech TRAYLESS SATA MOBILE RACK (HSB220SAT25B) termék leírása

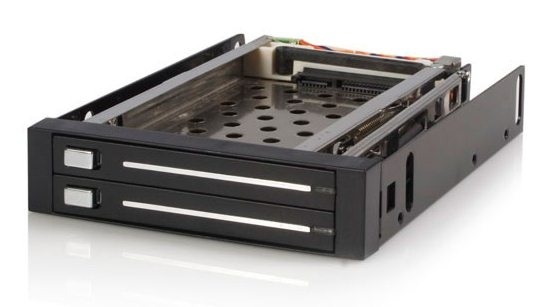

This 3.5in SATA hard drive hot-swap bay allows you to install two 2.5in SATA hard drives (HDD) or solid state drives (SSD) in an available/unused 3.5in floppy drive bay.
Featuring a convenient "no mounting required /easy eject" feature (like a tape cartridge or floppy disk), the hard drive hot swap bay doesn't require that the drives be installed in a tray - making it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments.
To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.
Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution.
With support for SATA HDD speeds up to 6.0 Gbps, this backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.
The StarTech.com Advantage
- Maximize performance, with file transfer speeds up to 6Gbps when paired with SATA III HDD and controller
- Quickly and easily install or remove HDD/SSD without having to open the chassis with the innovative trayless design
- Aluminum construction and 50,000+ insertion rating ensures longevity from both the HDD/SSD and bay
| Warranty | 2 Years |
| Hardware | |
| Key Lock | No |
| Number of Drives | 2 |
| Drive Size | 2.5in |
| Compatible Drive Types (Type and Rate) | SATA |
| Connector(s) | |
| Connector Type(s) | 2 - SATA (7 pin; Data) Receptacle |
| 2 - SATA Power (15 pin) Receptacle | |
| 2 - SP4 (4 pin; Small Drive Power) Male | |
| Drive Connectors | 2 - SATA (7 pin; Data) Receptacle |
| 2 - SATA Power (15 pin) Receptacle | |
| Host Connectors | 2 - SATA (7 pin; Data) Plug |
| 2 - SATA Power (15 pin) Plug | |
| Performance | |
| Type and Rate | SATA III (6 Gbps) |
| Max Drive Capacity | Tested up to 500GB per drive |
| Hot Swap Capability | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Aluminum |
| Max Drive Height | 0.4 in [9.5 mm] |
| Product Length | 5.3 in [134 mm] |
| Product Width | 4 in [102 mm] |
| Product Height | 0.9 in [24 mm] |
| Product Weight | 10 oz [282.5 g] |
| Indicators | |
| LED Indicators | 1 - Power/Drive Activity |
| Packaging Information | |
| Shipping (Package) Weight | 1.1 lb [0.5 kg] |
| What's in the Box | |
| Included in Package | 1 - Dual SATA Hot-Swap Bay |
| 2 - LP4-to-4-pin LED/15-pin SATA Power Y-cable | |
| 2 - SATA Cable | |
| 2 - Hard Drive Protector Film | |
| 1 - Screw Kit | |
| 1 - Instruction Manual |
