Manhattan 177603 2D Vonalkód olvasó, 430 mm Scan Mélység, USB

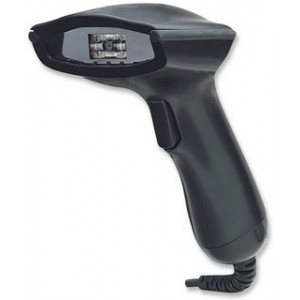

2D Barcode Scanner

430 mm Scan Depth, USB

Model Number: 177603

Standards and Certifications:

• FCC
• CE
• UL
• USB

  General:
• Supports 1D and 2D barcodes
• Light source: red laser 650 nm
• Scanner range: 430 mm
• Resolution: 752 horizontal x 480 vertical pixels, 256 gray levels
• Reading indicator: tone and LED
• Ambient light: 100,000 lux maximum (sunlight)
• Scan rate: 200 scans/second auto-adaptive in linear mode; 56 images/second auto-adaptive in area mode
• Interface: USB
• Switch: trigger

  Code support:
• 1D: UPC/EAN, UCC/EAN128, ISBN, ISBT, Code 11, Code 39, Code 93/93i, Code 128, Interleaved, Matrix, Industrial, Standard 2 of 5, Codabar, MSI, Plessey, Telepen, Postal codes, GS1 DataBar
• 2D: Data Matrix, PDF 417, Micro PDF 417, Maxicode, QR code, Aztec, EAN.UCC composite

  Physical:
• Dimensions: 19.3 x 9 x 7.2 cm (7.5 x 3.5 x 2.8 in.)
• Weight: 135 g (4.76 oz.)
• Cable length: 1.5 m (5 ft.)
• Operating temperature: 0 – 50°C
• Storage temperature: -20 – 70°C
• Relative humidity: 20 – 95% (non-condensing)
• Housing: ABS

  Electrical:
• Voltage: DC +5 V +/- 5%
• Power consumption: 435 mA (in operation)

  Package Contents:
• 2D Barcode Scanner
• User manual
